Configure solarTrina Tracker
Vanguard 1P
Single-axis solar tracker delivering up to 25% more yield than fixed-tilt. Designed for Malaysia's equatorial high-irradiance conditions, uneven LSS terrain, and utility-scale farms.
Tracker vs Fixed-Tilt — The Numbers
For utility-scale projects, the economics of tracking are compelling at Malaysia's latitude.
| Aspect | Vanguard 1P Tracker | Fixed-Tilt |
|---|---|---|
| Annual Energy Yield | +18% to +25% (manufacturer figure; site-dependent)✓ | Baseline |
| Terrain Adaptability | Up to 50° slope✓ | Flat only |
| Morning/Evening Generation | Full capture✓ | Significant losses |
| Shading Optimisation | Intelligent backtracking✓ | None |
| CAPEX | +8–12% vs fixed | Lower initial cost |
| LCOE (lifetime) | Site-specific✓ | Site-specific |
| Payback on tracker premium | Site-specific✓ | N/A |
Engineered for Equatorial Excellence
Intelligent Tracking Technology
Beyond simple East-West rotation — the Vanguard 1P's intelligence maximises every photon.
Intelligent Backtracking
Eliminates inter-row shading losses at low sun angles (morning and evening). The algorithm recalculates optimal tilt every minute using real-time irradiance and site geometry data.

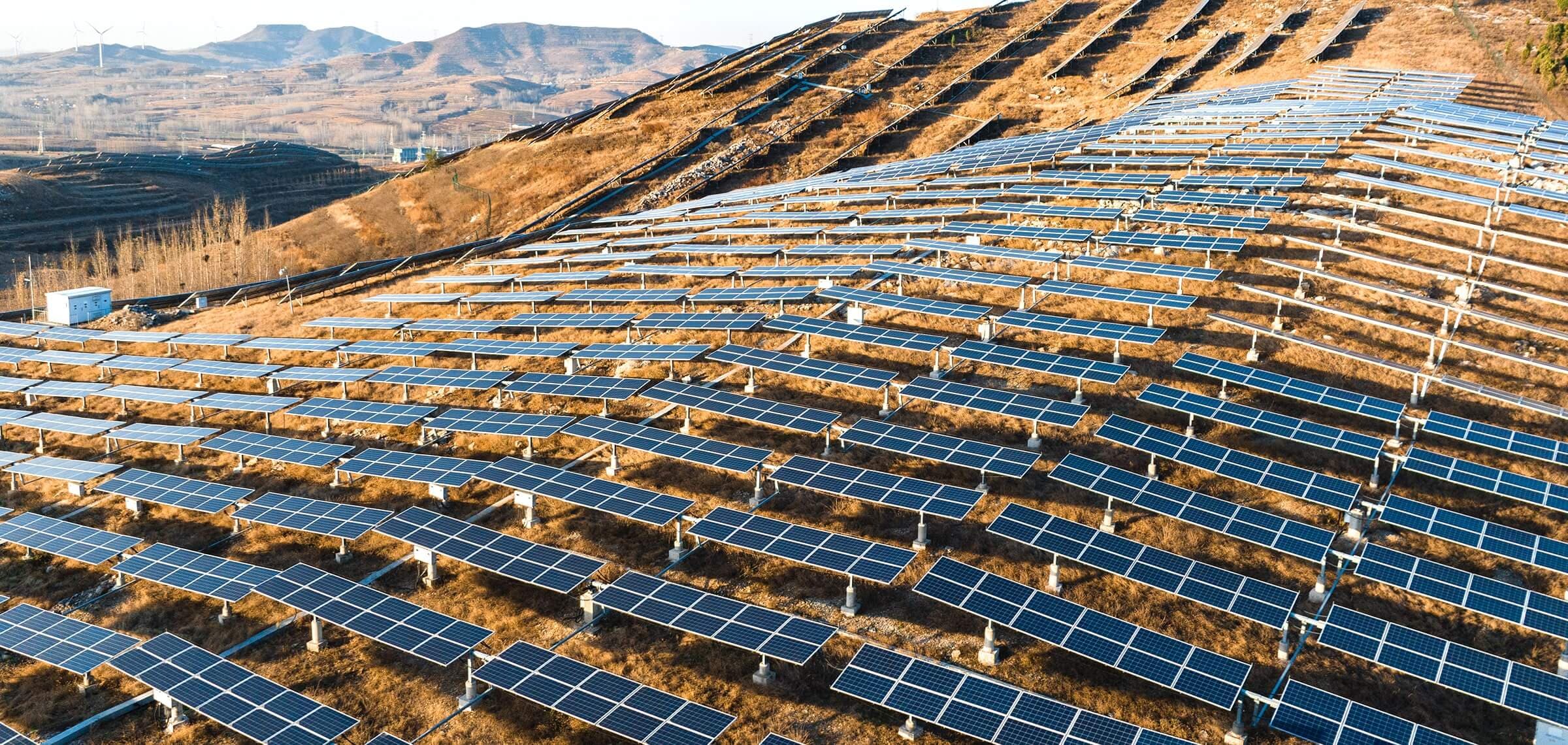

Terrain Adaptation
50° East-West slope tolerance and independent row adjustment for North-South undulation. Deploy on Malaysia's rolling terrain without expensive civil groundworks.
Wind Stow Protection
Automatic flat-stow mode at 18 m/s wind speed. The survival mode withstands gusts up to 45 m/s (design rating; site wind loads are assessed per project).
Astronomical + Irradiance Mode
Default mode uses astronomical algorithms (GPS-based). Optional real-time irradiance sensors enable enhanced yield capture during Malaysia's frequent partially-cloudy days.
Cloud-Connected Controller
The Trina TBox controller connects via Wi-Fi, 4G LTE, or RS485. Remote monitoring, OTA firmware updates, and fleet-level yield analytics through the Trina Cloud platform.
10-Year Structural Warranty
Hot-dip galvanised steel structure rated for Malaysia's high-humidity coastal and inland conditions. Third-party structural calculations available for site-specific wind loads.
Example Site Types in Malaysia
Illustrative site types only — not Trexon projects. Tracker yield gains depend on latitude, terrain and design.
North Kedah LSS Farm
Rolling agricultural plains with consistent NE/SW slopes — suited to Vanguard 1P adaptive terrain following.
Central Pahang Utility Farm
Larger utility-scale sites with open terrain, where a tracker's yield gain is assessed in the site design.
Sabah Equatorial Sites
Near-equatorial sites with high humidity, where Vanguard 1P's IP65 weather sealing matters. East Malaysia projects are handled via partners.
Frequently Asked Questions
Everything you need to know about solar trackers for Malaysia's LSS projects
Deploy Trina Tracker on Your LSS Farm
Trina Vanguard 1P trackers are not stocked by Trexon and are quoted per project after a feasibility review.
