Autel MaxiCharger AC 22kW (LCD Screen)

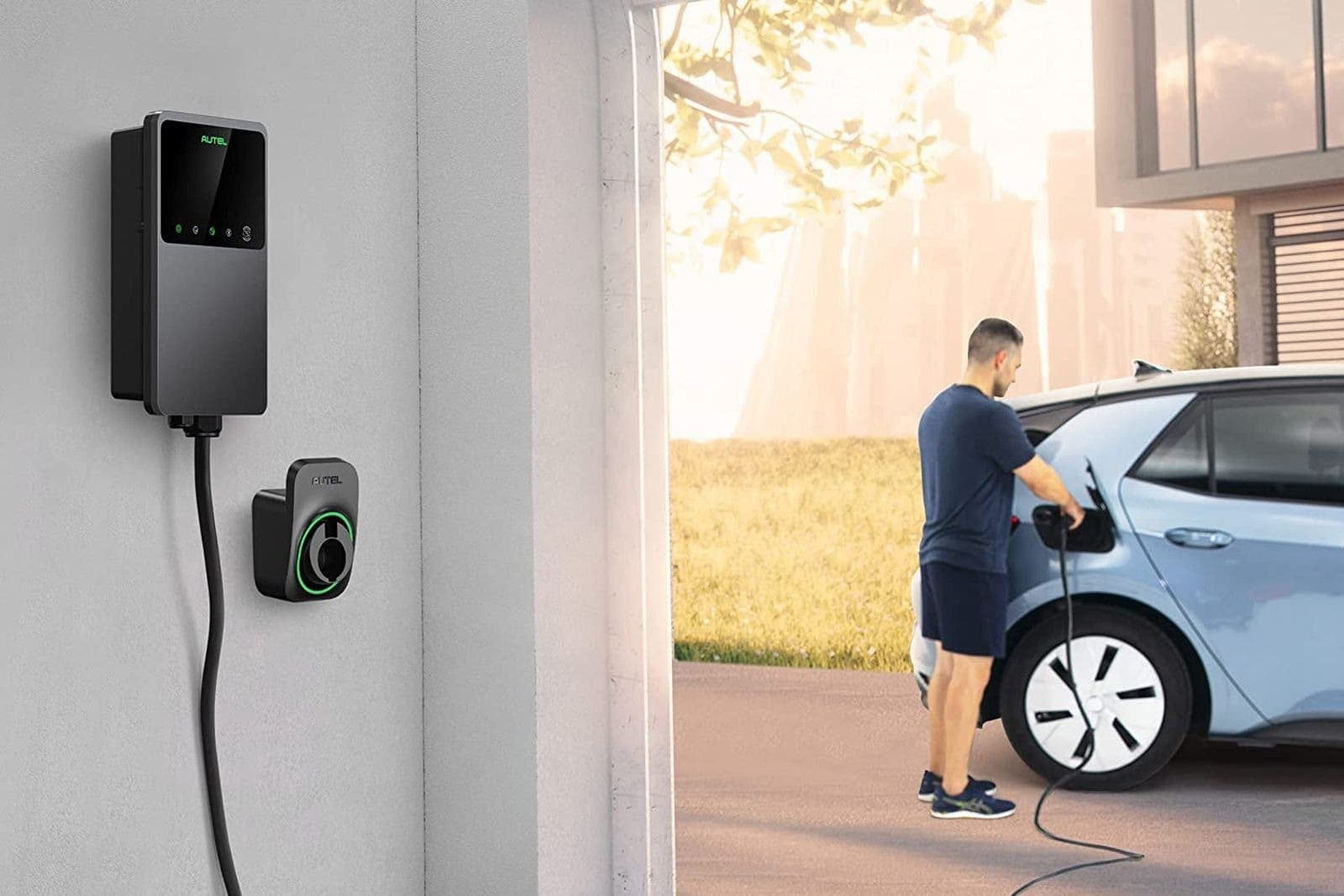

Autel MaxiCharger AC Wallbox 22kW (LCD Screen) — three-phase 400V/32A smart EV charger with 5-inch full-color LCD touchscreen (800 x 480) and built-in MID-certified energy meter for revenue-grade billing. RM 6,288 fully installed (price includes standard installation). WiFi/Bluetooth/Ethernet/RS485, OCPP 1.6J + Modbus TCP/IP, RFID, dynamic load balancing, AC 30mA + DC 6mA leakage protection, IP65 rated. 5m Type 2 tethered cable.

Maximum output

Up to 22kW

Connector

Type 2

Installation

4-6 hours (same day)

Weather rating

IP65 (IK08 screen)

Product highlights

Features listed for this charger model.

5-inch full-color LCD touchscreen (800 x 480)
Built-in MID-certified energy meter
Up to 32A / 22kW three-phase
WiFi, Bluetooth, Ethernet, RS485
RFID access (ISO 15693 / ISO 14443)
Dynamic load balancing

At a glance

The key delivery and support details.

Brand: Autel Digital Power Co., Ltd.
Warranty: 3 years warranty (extension available)
Installation timing: 4-6 hours (same day)
Solar compatible: Yes

Technical specifications

Model details supplied for this charger.

Dimensions: 336 x 187 x 85 mm (H x W x D)
Weight: 9 kg
Supply: 400V · 32A
Cable length: 5m
WiFi: Included
App control: Included
RFID access: Included
Load balancing: Supported

Certifications and approvals

SIRIMTNB-ApprovedCE (TÜV)IEC 61851-1IEC 62955EN 50663EN 50665
